7. Analysis of AES competition cryptographic algorithms¶

7.1.3. S2 ¶

7.1.3.1. Representations¶

7.1.4. S3 ¶

7.1.4.1. Representations¶

7.1.5. S4 ¶

7.1.5.1. Representations¶

7.2. Crypton ¶

7.2.1. Description ¶

CRYPTON is a symmetric block cipher designed by Chae Hoon Lim of Future Systems Inc. In this section, we study both the AES proposal (v0.5) and the revised version (v1.0). In v0.5 the authors used two 8x8 S-boxes constructed from 4-bit permutations using a 3-round Feistel Cipher (Tabular representation of S-boxes). In v1.0 the authors used four variants of one S-box, instead of independent four S-boxes to allow greater flexibility in memory requirements. The four 8x8 S-boxes are $S_i (0 \leq i \leq 3)$ , such that $S2 = {S_0}^{-1}$ and $S3 = {S_1}^{-1}$

7.2.2. Summary ¶

S-box	NL	LD	DEG	AI	MAXAC	$\sigma$	LP	DP
S0 (v0.5)	96	32	5	3	128	581632	0.0625	0.03125
S1 (v0.5)	96	28	5	3	144	581632	0.0625	0.03125
S0 (v1.0)	96	40	6	4	96	280192	0.0625	0.0390625
S1 (v1.0)	96	40	6	4	96	280192	0.0625	0.0390625
S2 (v1.0)	96	40	6	4	96	280192	0.0625	0.0390625
S3 (v1.0)	96	40	6	4	96	280192	0.0625	0.0390625

7.2.3. S0 (v0.5)¶

7.2.3.1. Representations¶

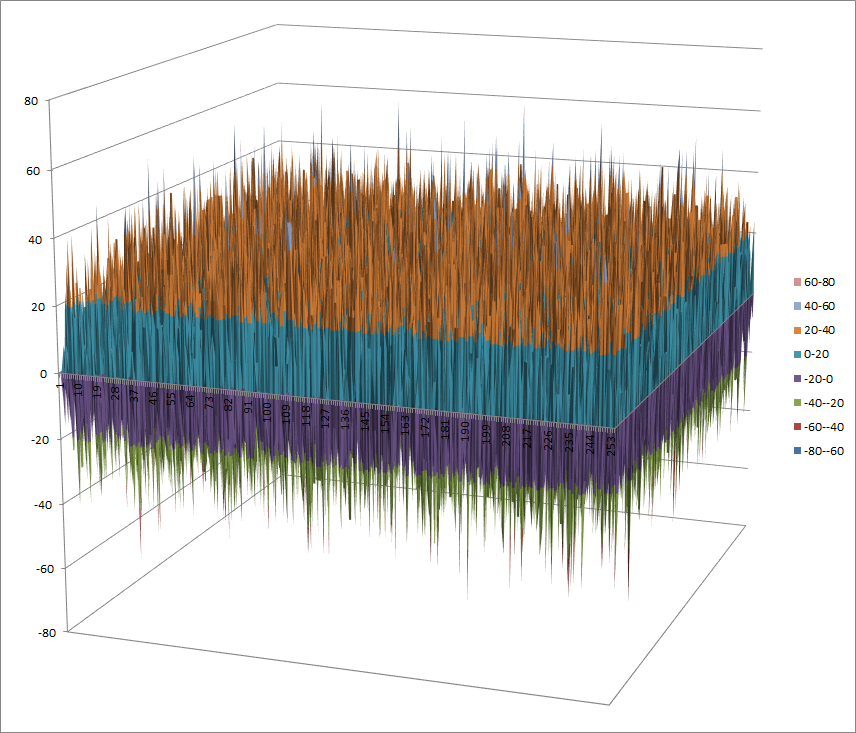

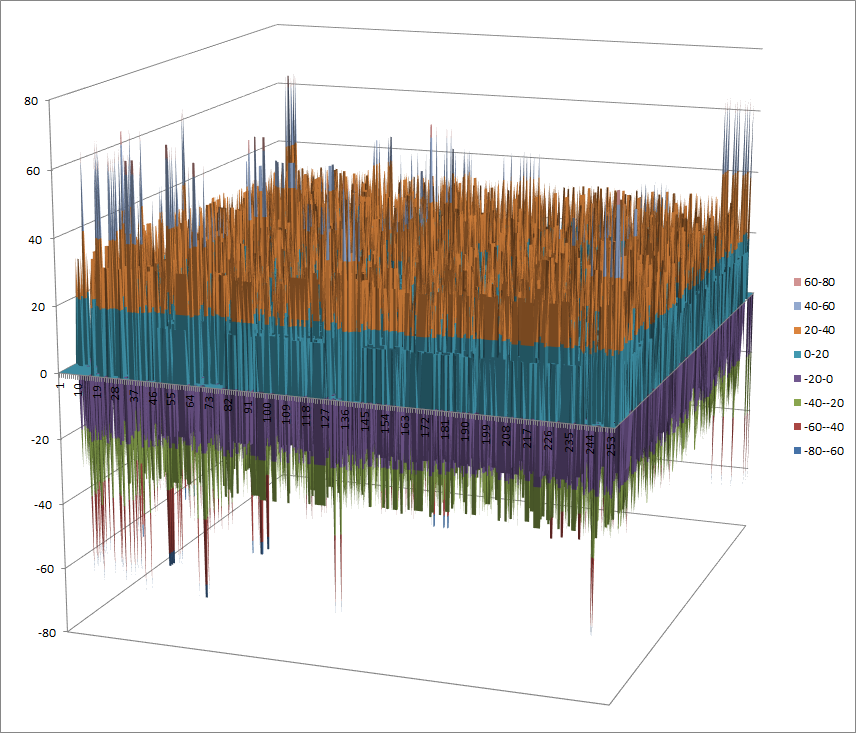

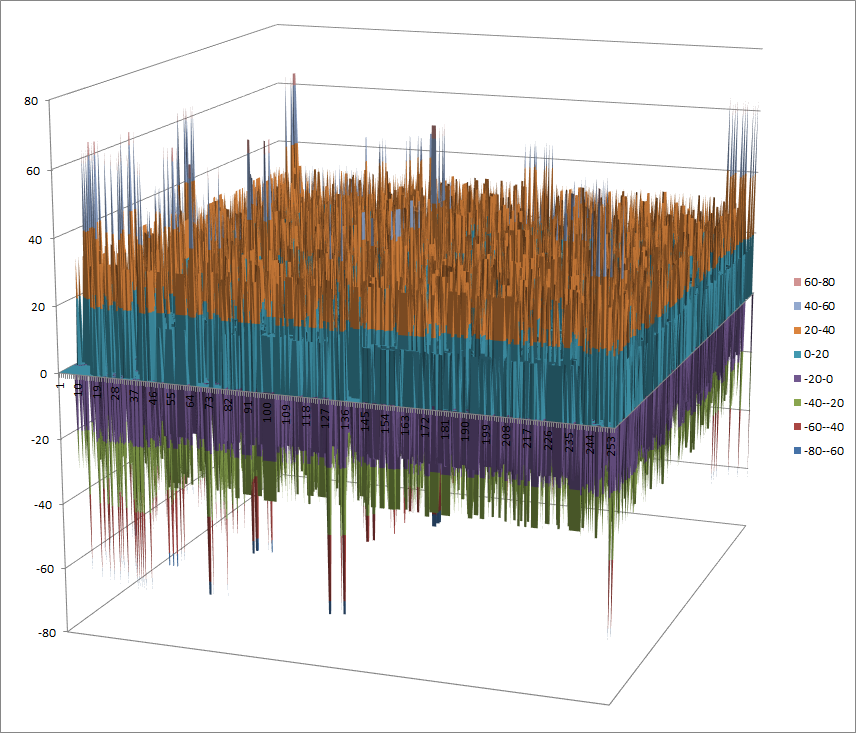

Walsh Spectrum representation (except first row and column):

7.2.3.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	1
3	1
7	3
10	2
11	2
15	1
16	2
17	1
22	1
42	1
61	1

There are no linear structures

It has 1 fixed point: (0,0,0,0,1,1,1,1)

It has 1 negated fixed point: (1,1,1,0,1,1,1,1)

7.2.4. S1 (v0.5)¶

7.2.4.1. Representations¶

Walsh Spectrum representation (except first row and column):

7.2.4.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	1
3	1
7	3
10	2
11	2
15	1
16	2
17	1
22	1
42	1
61	1

There are no linear structures

It has 1 fixed point: (0,0,0,0,1,1,1,1)

It has 1 negated fixed point: (0,0,0,1,0,0,0,0)

7.2.5. S0 (v1.0)¶

7.2.5.1. Representations¶

Walsh Spectrum representation (except first row and column):

7.2.5.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	1
2	1
5	1
248	1

There are no linear structures

It has 1 fixed point: (0,1,1,1,0,1,0,1)

It has no negated fixed points

7.2.6. S1 (v1.0)¶

7.2.6.1. Representations¶

Walsh Spectrum representation (except first row and column):

7.2.6.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
3	1
5	1
12	1
22	1
28	1
48	1
50	1
88	1

There are no linear structures

It has no fixed points

It has 1 negated fixed point: (1,0,1,0,1,1,1,0)

7.2.7. S2 (v1.0)¶

7.2.7.1. Representations¶

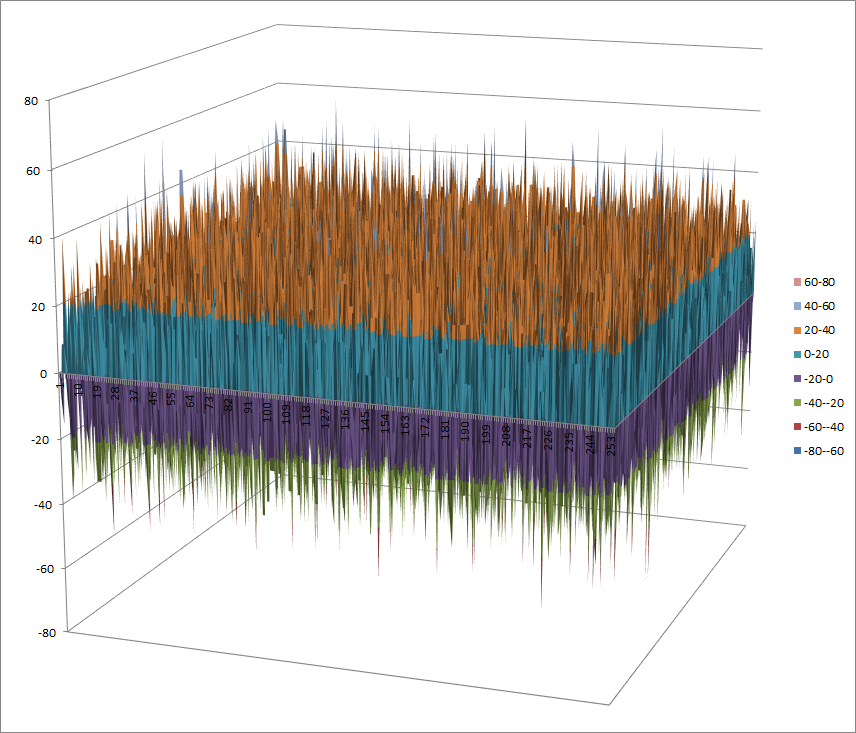

Walsh Spectrum representation (except first row and column):

7.2.7.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	1
2	1
5	1
248	1

There are no linear structures

It has 1 fixed point: (0,1,1,1,0,1,0,1)

It has no negated fixed points

7.2.8. S3 (v1.0)¶

7.2.8.1. Representations¶

Walsh Spectrum representation (except first row and column):

7.2.8.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
3	1
5	1
12	1
22	1
28	1
48	1
50	1
88	1

There are no linear structures

It has no fixed points

It has 1 negated fixed point: (0,1,0,1,0,0,0,1)

7.3. DEAL ¶

7.3.1. Description ¶

DEAL (Data Encryption Algorithm with Larger blocks) is a symmetric block cipher derived from the Data Encryption Standard (DES). The design was proposed in a report by Lars Knudsen in 1998, and was submitted to the AES competition by Richard Outerbridge (who notes that Knudsen had presented the design at the SAC conference in 1997).

DEAL has eight 6x4 S-boxes: S1, S2, S3, S4, S5, S6, S7, S8. They are the same as DES S-boxes and you can see an analysis in DES.

7.4. E2 ¶

7.4.1. Description ¶

E2 is a symmetric block cipher which was created in 1998 by NTT and submitted to the AES competition. E2 has an input transformation and output transformation that both use modular multiplication, but the round function itself consists only of XORs and S-box lookups. The single 8×8-bit S-box is constructed from the composition of an affine transformation with the discrete exponentiation $x^{127}$ over the finite field $GF(2^8)$ . NTT adopted many of E2’s special characteristics in Camellia, which has essentially replaced E2.

7.4.2. Summary ¶

S-box	NL	LD	DEG	AI	MAXAC	$\sigma$	LP	DP
S	100	38	6	4	104	236800	0.0478515625	0.0390625

7.4.3. S ¶

7.4.3.1. Representations¶

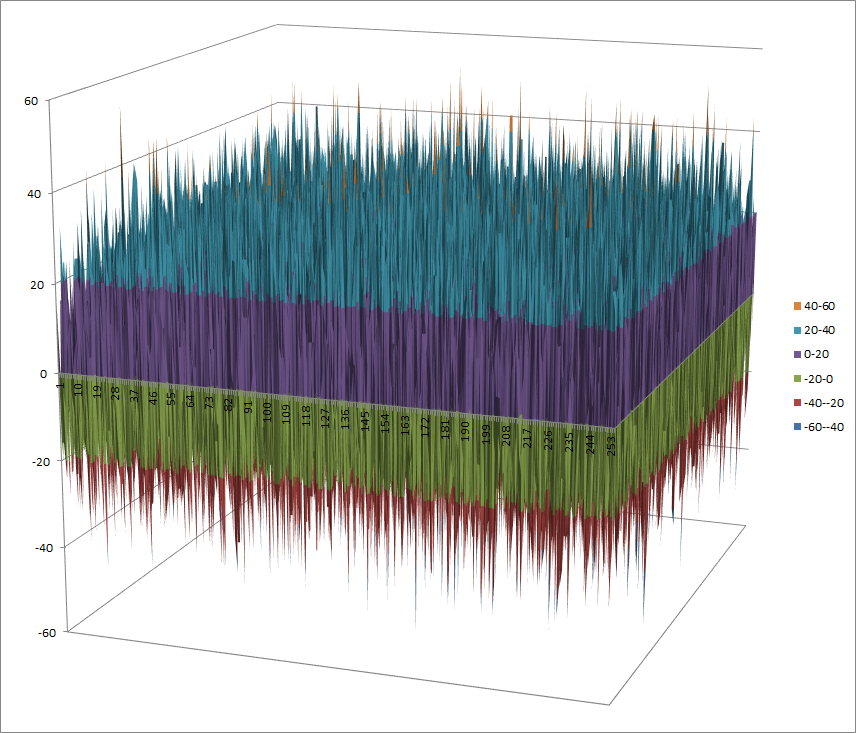

Walsh Spectrum representation (except first row and column):

7.4.3.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
2	1
3	1
7	1
24	1
64	1
156	1

There are no linear structures

It has no fixed points.

It has 2 negated fixed points: (0,0,1,0,1,0,0,1), (1,0,0,0,1,0,1,1)

7.5. LOKI97 ¶

7.5.1. Description ¶

LOKI97 is a block cipher which was a candidate in the Advanced Encryption Standard competition. It is a member of the LOKI family of ciphers, earlier instances being LOKI89 and LOKI91. LOKI97 was designed by Lawrie Brown, assisted by Jennifer Seberry and Josef Pieprzyk. The LOKI97 round function uses two columns each with multiple copies of two basic S-boxes. The S-boxes chosen for LOKI97 use cubing in a galois field $GF(2^n)$ with n odd. In order to use odd sized inputs, S1 uses 13 input bits, and S2 uses 11. The S-box functions are:

S1[x]=((x XOR 1FFF)^3 mod 2911) & FF $\in GF(2^{13})$

S2[x]=((x XOR 7FF)^3 mod AA7) & FF $\in GF(2^{11})$

where all constant above are written in hex and all computations are done as polynomials in $GF(2^n)$ .

7.5.2. Summary ¶

S-box	size	NL	LD	DEG	AI	MAXAC	$\sigma$	LP	DP
S1	13x8	4032	0	2	2	8192	134217728	0.000244140625	0.0078125
S2	11x8	992	0	2	2	2048	8388608	0.0009765625	0.0078125

7.5.3. S1 ¶

7.5.3.1. Representations¶

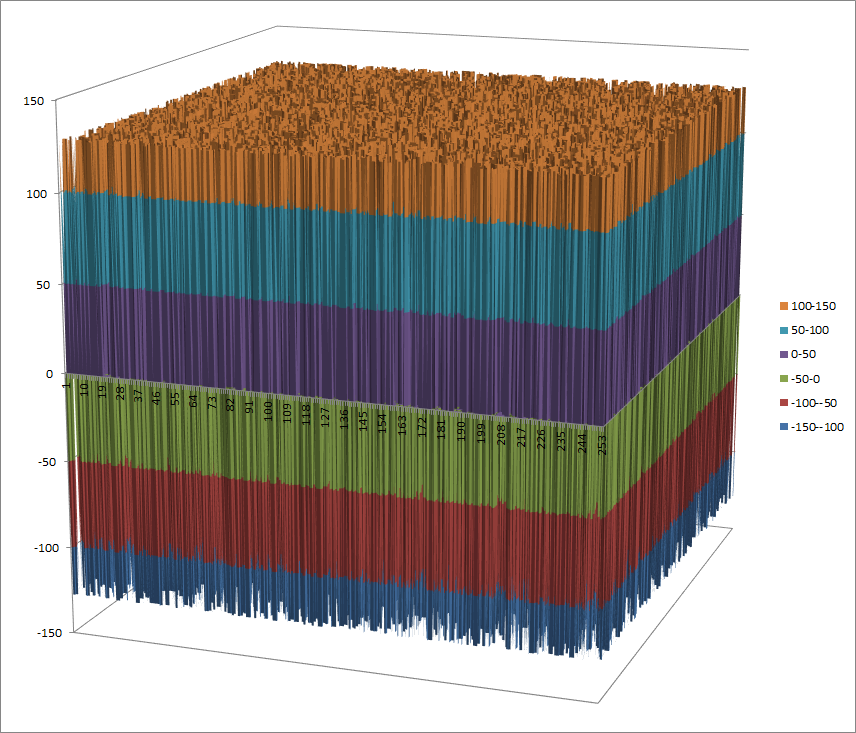

Walsh Spectrum representation (256x256 first values except first row and column):

7.5.3.2. Other useful information in cryptanalysis¶

There are 255 linear structures:

Linear structures

7.5.4. S2 ¶

7.5.4.1. Representations¶

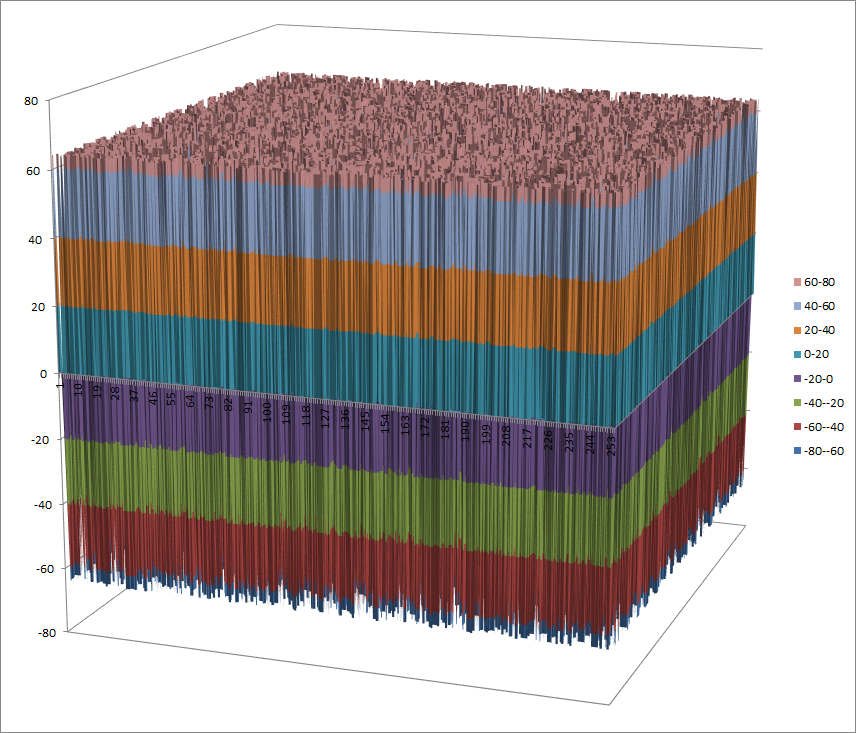

Walsh Spectrum representation (256x256 first values except first row and column):

7.5.4.2. Other useful information in cryptanalysis¶

There are 256 linear structures:

Linear structures

7.6. Magenta ¶

7.6.1. Description ¶

Magenta is a symmetric key block cipher developed by Michael Jacobson Jr. and Klaus Huber for Deutsche Telekom. The cipher was submitted to the Advanced Encryption Standard process, but did not advance beyond the first round; cryptographic weaknesses were discovered and it was found to be one of the slower ciphers submitted. It has one 8x8 S-box.

7.6.2. Summary ¶

S-box	NL	LD	DEG	AI	MAXAC	$\sigma$	LP	DP
S	102	44	7	4	80	217600	0.04125976563	0.03125

7.6.3. S ¶

7.6.3.1. Representations¶

Polynomial function over $\gf{GF(2^8)}$ with irreducible polynomial $x^8+x^6+x^5+x^2+1$ : Trace representation

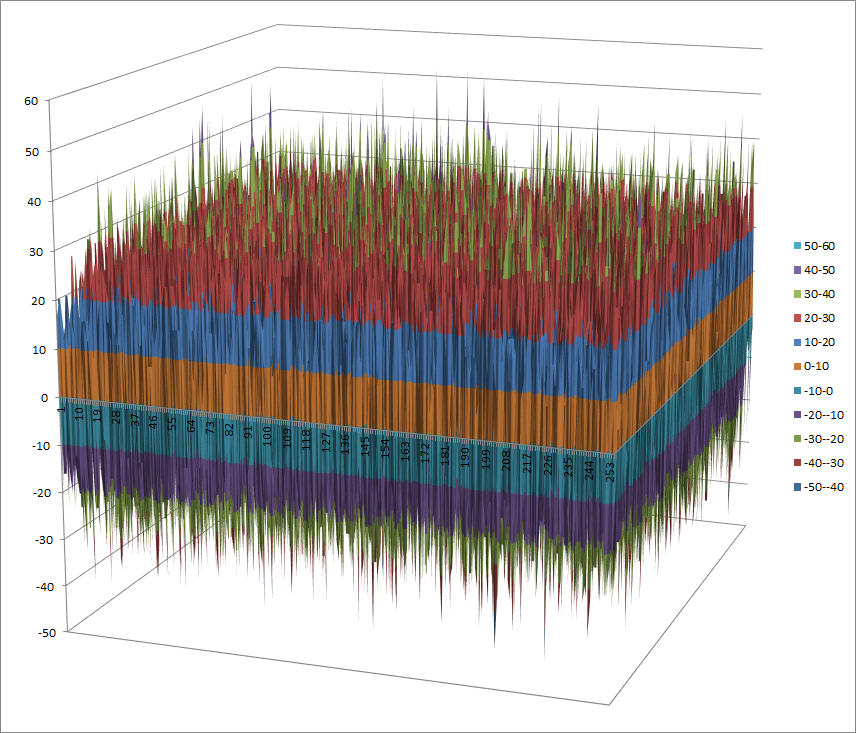

Walsh Spectrum representation (except first row and column):

7.6.3.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	1
5	2
9	1
38	1
198	1

There are no linear structures

It has 1 fixed point: (1,0,1,0,0,0,0,1)

It has 2 negated fixed points: (0,0,0,1,1,1,0,0), (1,1,1,1,1,1,1,1)

7.7. Mars ¶

7.7.1. Description ¶

Mars is a block cipher that was IBM’s submission to the Advanced Encryption Standard process. MARS was selected as an AES finalist in August 1999, after the AES2 conference in March 1999, where it was voted as the fifth and last finalist algorithm. It has two 8x32 S-boxes: S0 and S1

7.7.2. S0 ¶

7.7.2.1. Representations¶

7.7.3. S1 ¶

7.7.3.1. Representations¶

7.8. Rijndael ¶

7.8.1. Description ¶

Rijndael, later called AES, is a block cipher used for securing sensitive but unclassified material by U.S. Government agencies since December 6, 2001 and has become the de facto encryption standard for commercial transactions in the private sector.

$S_{RD}$ is AES 8x8 S-box and it is generated by determining the multiplicative inverse for a given number in $GF(2^8) = GF(2)[x]/(x^8 + x^4 + x^3 + x + 1)$ , Rijndael’s finite field. ${S_{RD}}^{-1}$ is the inverse S-box and it is simply the S-box $S_{RD}$ run in reverse.

The tabular representation of $S_{RD}$ S-box represented in hexadecimal notation is the following:

Here the column is determined by the least significant nibble (four-bit aggregation), and the row is determined by the most significant nibble. For example, the value 0x9a is converted into 0xb8 by Rijndael’s S-box. Note that the multiplicative inverse of 0x00 is defined as itself.

The tabular representation of ${S_{RD}}^{-1}$ S-box represented in hexadecimal notation is the following:

For hardware implementations, it might be useful to use the following decomposition of $S_{RD}$ :

$S_{RD}[a] = f(g(a))$

where $g(a)$ is the mapping

$a \rightarrow a^{-1}$ in $GF(2^8)$ , and $f(a)$ is an affine mapping. Since $g(a)$ is self-inverse, we have:

${S_{RD}}^{-1}[a] = {g}^{-1}({f}^{-1}(a)) = g({f}^{-1}(a))$

The tabular representation of $g$ mapping is represented in hexadecimal notation as follows:

The tabular representation of $f$ mapping is represented in hexadecimal notation as follows:

The tabular representation of $f^{-1}$ mapping is represented in hexadecimal notation as follows:

In the algorithm of Rijndael there are multiplications of a variable with a constant. A mapping called xtime is implemented in the algorithm in order to multiply by $02$ . Since all elements of $GF(2^8)$ can be written as a sum of powers of $02$ , multiplication by any constant can be implemented by a repeated use of xtime. The tabular representation of xtime mapping is represented in hexadecimal notation as follows:

7.8.2. Summary ¶

S-box	NL	LD	DEG	AI	MAXAC	$\sigma$	LP	DP
$S_{RD}$	112	56	7	4	32	133120	0.015625	0.015625
${S_{RD}}^{-1}$	112	56	7	4	32	133120	0.015625	0.015625
$g$	112	56	7	4	32	133120	0.015625	0.015625
$f$	0	0	1	1	256	16777216	1	1
$f^{-1}$	0	0	1	1	256	16777216	1	1
xtime	0	1	1	1	256	16777216	1	0.9921875

7.8.3. $S_{RD}$ ¶

7.8.3.1. Representations¶

Polynomial function over $\gf{GF(2^8)}$ with irreducible polynomial $x^8 + x^4 + x^3 + x + 1$ : Trace representation

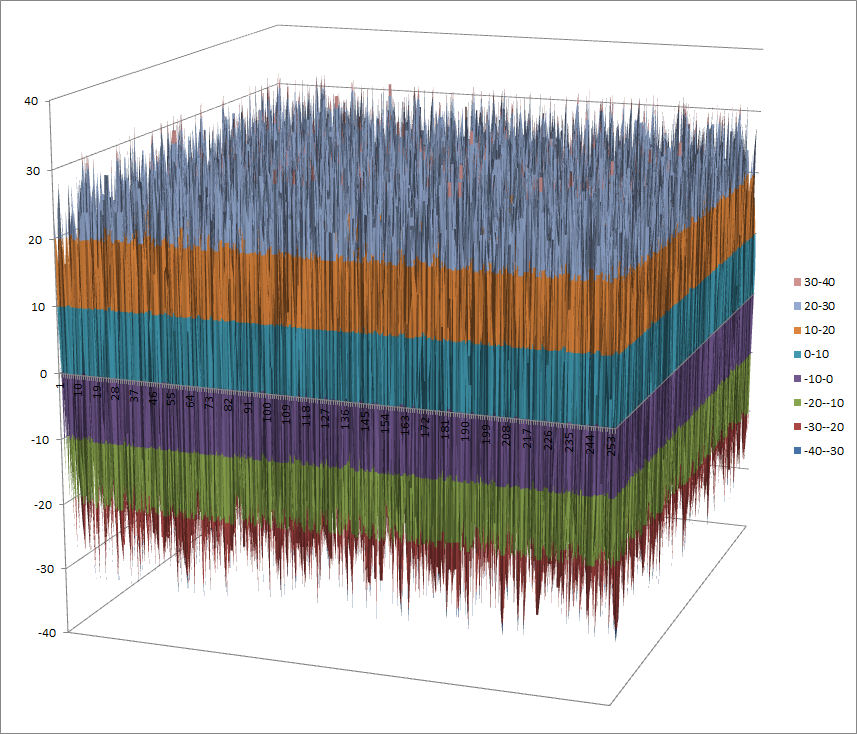

Walsh Spectrum representation (except first row and column):

7.8.3.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
2	1
27	1
59	1
81	1
87	1

There are no linear structures

It has no fixed points. It has no negated fixed points

7.8.4. ${S_{RD}}^{-1}$ ¶

7.8.4.1. Representations¶

Polynomial function over $\gf{GF(2^8)}$ with irreducible polynomial $x^8 + x^4 + x^3 + x + 1$ : Trace representation

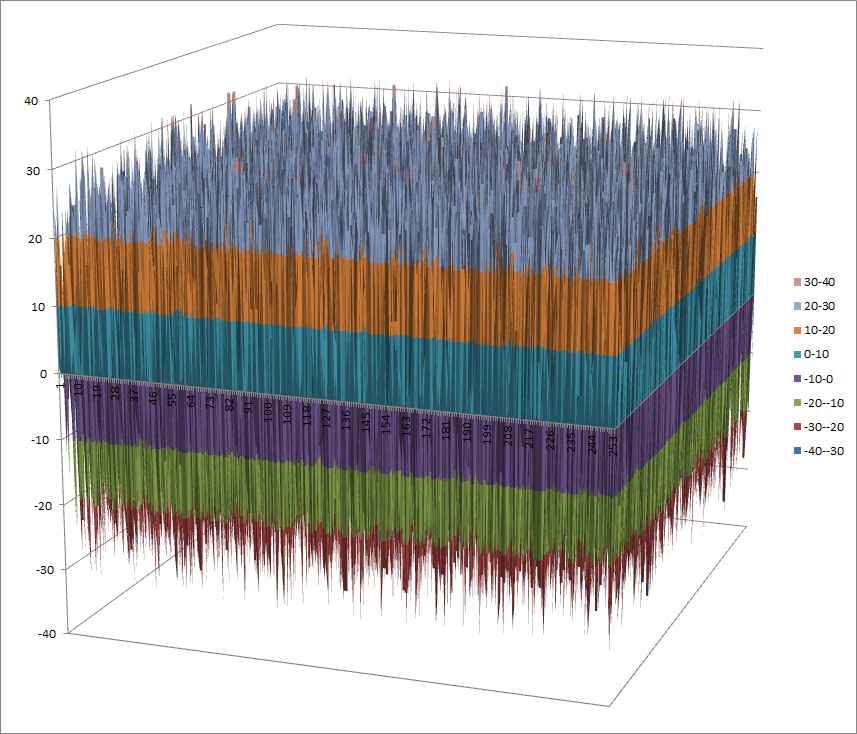

Walsh Spectrum representation (except first row and column):

7.8.4.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
2	1
27	1
59	1
81	1
87	1

There are no linear structures

It has no fixed points. It has no negated fixed points

7.8.5. $g$ ¶

7.8.5.1. Representations¶

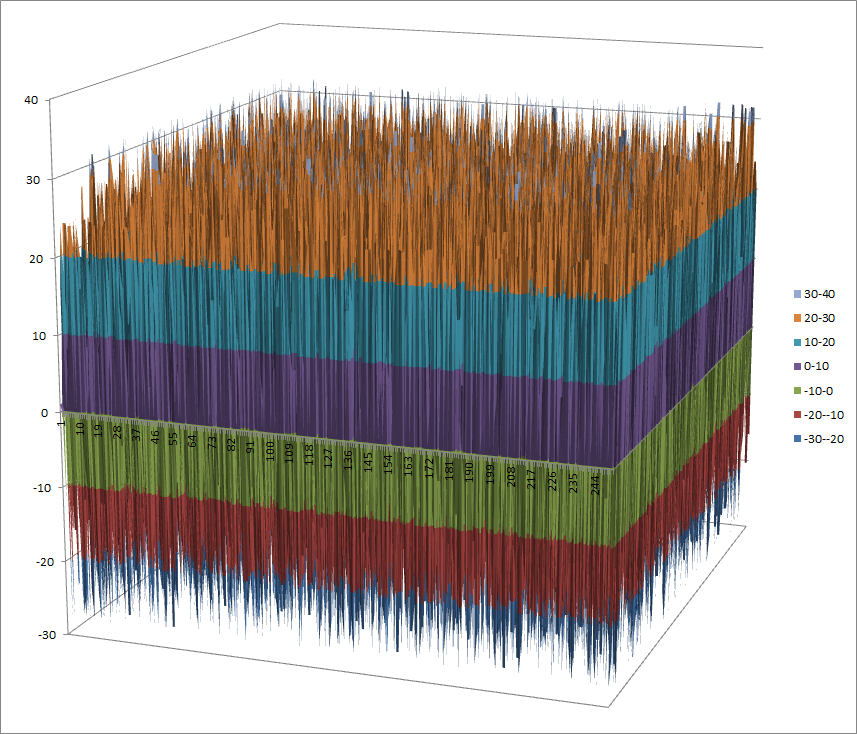

Walsh Spectrum representation (except first row and column):

7.8.5.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	2
2	127

There are no linear structures

It has 2 fixed points: (0,0,0,0,0,0,0,0), (0,0,0,0,0,0,0,1)

It has no negated fixed points: (0,1,1,1,1,1,1,0), (1,0,0,0,0,0,0,1)

7.8.6. $f$ ¶

7.8.6.1. Representations¶

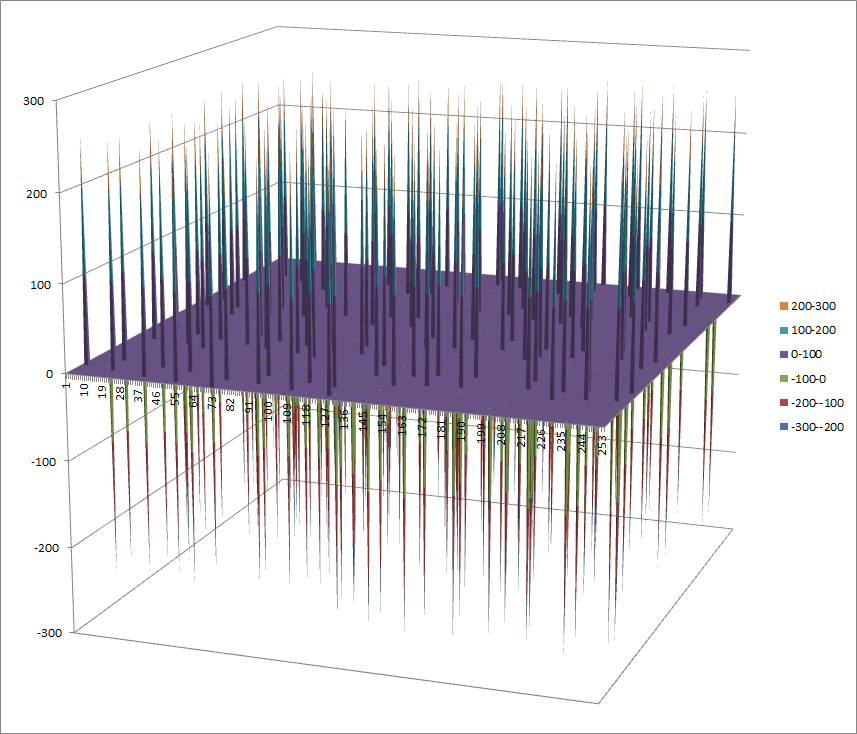

Walsh Spectrum representation (except first row and column):

7.8.6.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
4	64

There are 65025 linear structures

It has no fixed points. It has no negated fixed points

7.8.7. $f^{-1}$ ¶

7.8.7.1. Representations¶

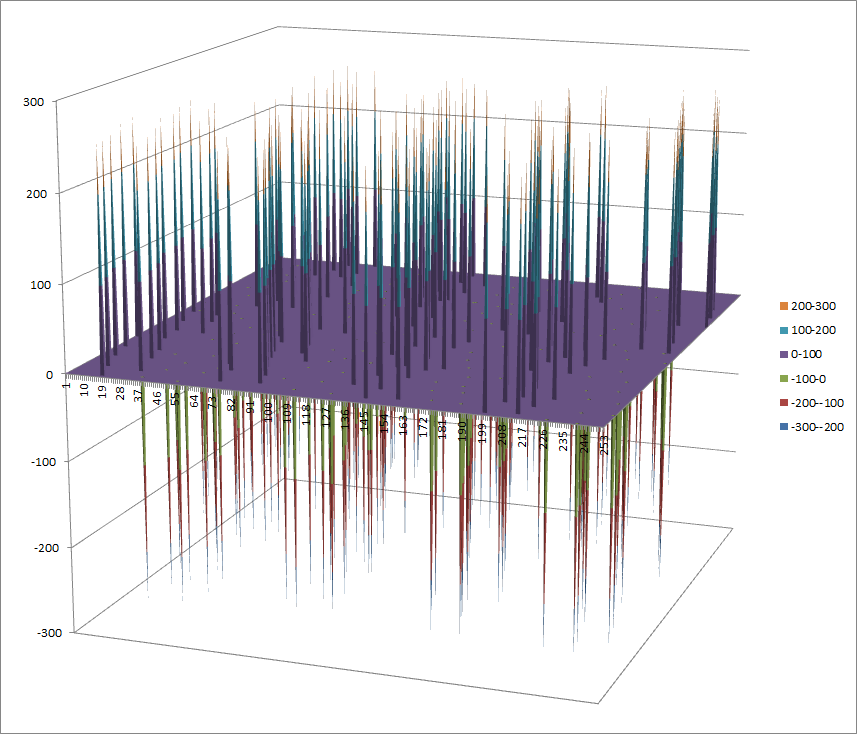

Walsh Spectrum representation (except first row and column):

7.8.7.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
4	64

There are 65025 linear structures

It has no fixed points. It has no negated fixed points

7.8.8. xtime ¶

7.8.8.1. Representations¶

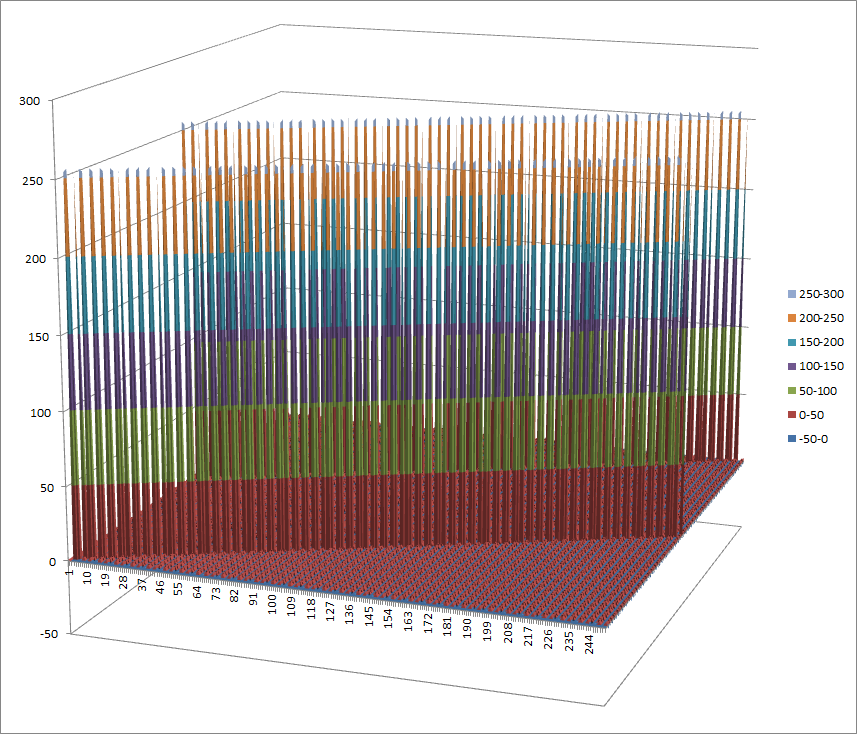

Walsh Spectrum representation (except first row and column):

7.8.8.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	1
2	1
51	1
79	1
85	1
92	1
100	1

There are no linear structures

It has 1 fixed point: (0,0,0,0,0,0,0,0)

It has 1 negated fixed point: (0,1,0,1,0,1,0,1)

7.9. Safer+¶

7.9.1. Description ¶

Safer+ (Massey et al., 1998) was submitted as a candidate for the Advanced Encryption Standard and has a block size of 128 bits. The cipher was not selected as a finalist. Bluetooth uses custom algorithms based on SAFER+ for key derivation (called E21 and E22) and authentication as message authentication codes (called E1). Encryption in Bluetooth does not use SAFER+. It has one 8x8 S-box called expf and other 9x8 S-box called logf.

7.9.2. Summary ¶

S-box	size	NL	LD	DEG	AI	MAXAC	$\sigma$	LP	DP
expf	8x8	82	0	6	3	256	711424	0.1291503906	0.5
logf	9x8	164	0	6	3	512	4520960	0.1291503906	0.5

7.9.3. expf ¶

7.9.3.1. Representations¶

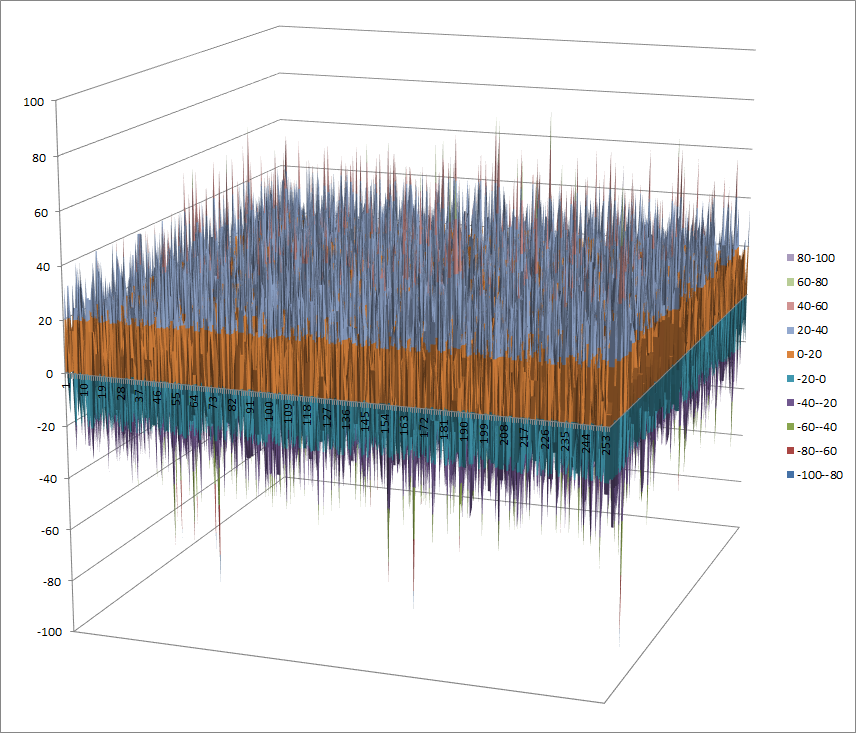

Walsh Spectrum representation (except first row and column):

7.9.3.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	3
2	1
41	1
42	1
168	1

There are 3 linear structures:

([1 0 0 0 0 0 0 0],[0 0 0 0 0 0 0 1])
([1 0 0 0 0 0 0 0],[0 0 0 0 0 0 1 0])
([1 0 0 0 0 0 0 0],[0 0 0 0 0 0 1 1])

It has 3 fixed points: (0,0,0,1,1,0,1,1), (0,1,0,1,0,1,1,1), (0,1,0,1,1,1,0,0)

It has 4 negated fixed points: (0,0,0,1,0,1,0,0), (0,0,1,0,1,1,0,0), (0,1,0,1,1,1,1,1), (1,0,1,0,1,1,1,1)

7.9.4. logf ¶

7.9.4.1. Representations¶

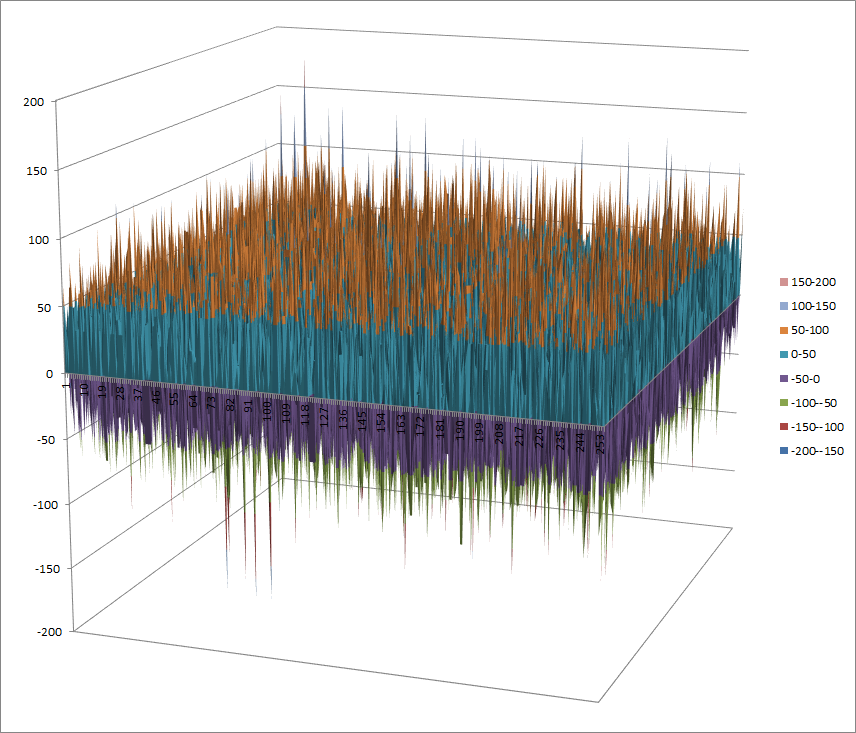

Walsh Spectrum representation (first 256x256 values except first row and column):

7.9.4.2. Other useful information in cryptanalysis¶

There is 255 linear structures:

Linear structures

7.10. Serpent ¶

7.10.1. Description ¶

Serpent is a symmetric key block cipher that was a finalist in the Advanced Encryption Standard (AES) contest, where it was ranked second to Rijndael. Serpent was designed by Ross Anderson, Eli Biham, and Lars Knudsen. It has eight 4x4 S-boxes: S0, S1, S2, S3, S4, S5, S6, S7.

7.10.2. Summary ¶

S-box	NL	DEG	AI	MAXAC	$\sigma$	LP	DP
S0	4	2	2	16	1024	0.25	0.25
S1	4	2	2	16	1024	0.25	0.25
S2	4	2	2	16	1024	0.25	0.25
S3	4	2	2	16	1024	0.25	0.25
S4	4	2	2	16	1024	0.25	0.25
S5	4	2	2	16	1024	0.25	0.25
S6	4	2	2	16	1024	0.25	0.25
S7	4	2	2	16	1024	0.25	0.25

7.10.3. S0 ¶

7.10.3.1. Representations¶

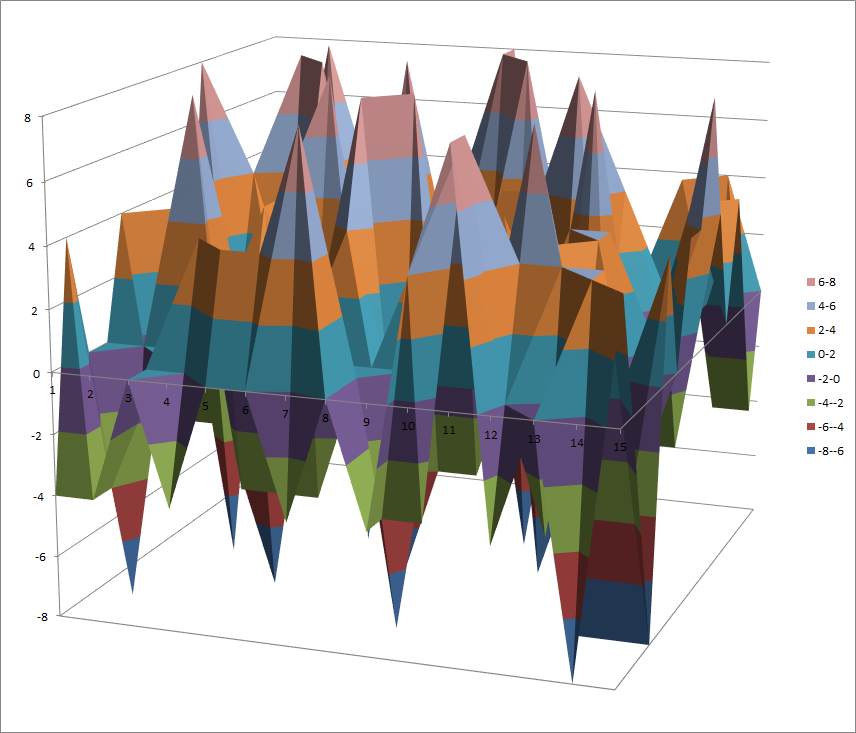

Walsh Spectrum representation (except first row and column):

7.10.3.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
2	2
5	1
7	1

There are 9 linear structures:

([0 0 1 0],[1 0 0 0])
([0 1 0 0],[0 0 1 1])
([0 1 0 0],[1 0 0 0])
([0 1 0 0],[1 0 1 1])
([0 1 1 0],[1 0 0 0])
([1 0 0 1],[0 0 1 1])
([1 0 1 1],[1 0 1 1])
([1 1 0 1],[0 0 1 1])
([1 1 1 1],[1 0 1 1])

It has no fixed points. It has no negated fixed points

7.10.4. S1 ¶

7.10.4.1. Representations¶

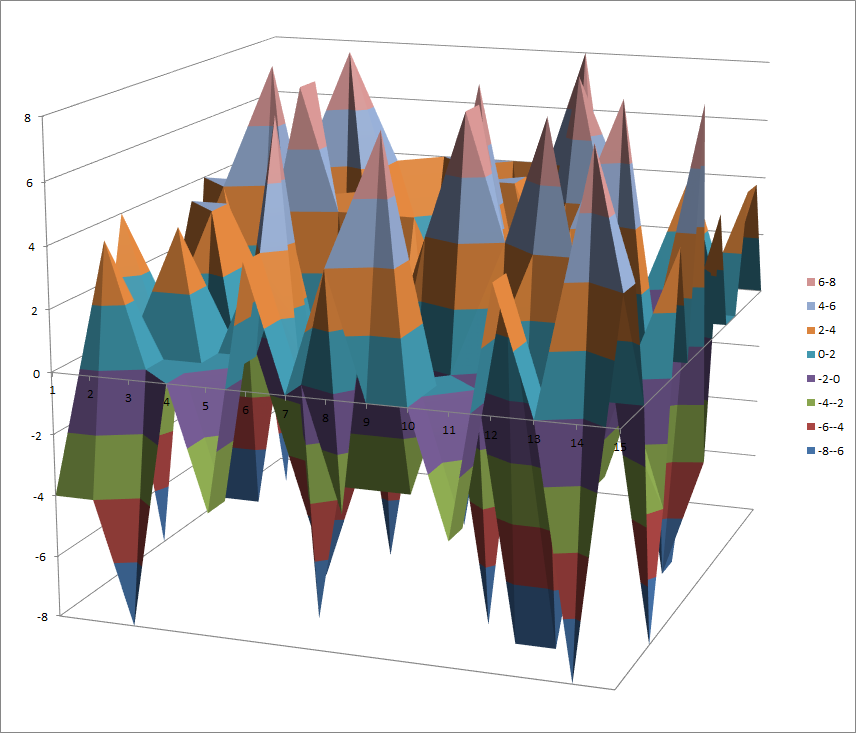

Walsh Spectrum representation (except first row and column):

7.10.4.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	2
4	1
10	1

There are 9 linear structures:

([0 0 1 1],[1 1 1 0])
([0 1 0 0],[0 1 0 0])
([0 1 0 0],[1 0 1 0])
([0 1 0 0],[1 1 1 0])
([0 1 1 1],[1 1 1 0])
([1 0 0 0],[0 1 0 0])
([1 0 1 1],[1 0 1 0])
([1 1 0 0],[0 1 0 0])
([1 1 1 1],[1 0 1 0])

It has 1 fixed point: (0,0,1,0)

It has 1 negated fixed point: (0,0,0,0)

7.10.5. S2 ¶

7.10.5.1. Representations¶

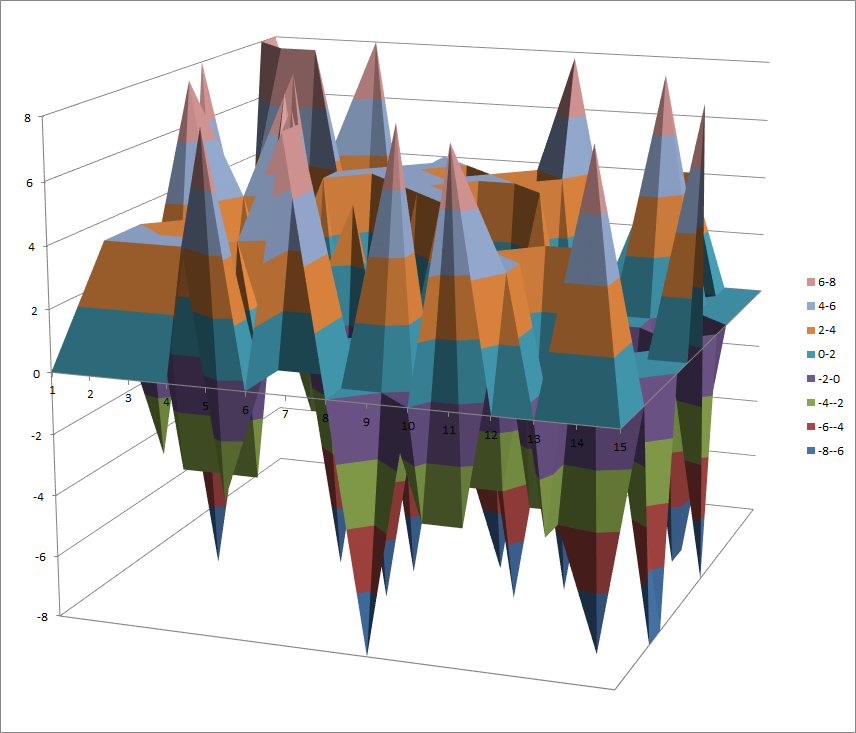

Walsh Spectrum representation (except first row and column):

7.10.5.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
3	1
13	1

There are 9 linear structures:

([0 0 1 0],[0 0 0 1])
([0 0 1 0],[1 1 1 0])
([0 0 1 0],[1 1 1 1])
([0 1 0 0],[1 1 1 0])
([0 1 1 0],[1 1 1 0])
([1 0 0 0],[0 0 0 1])
([1 0 1 0],[0 0 0 1])
([1 1 0 0],[1 1 1 1])
([1 1 1 0],[1 1 1 1])

It has no fixed points

It has 1 negated fixed point: (1,0,1,1)

7.10.6. S3 ¶

7.10.6.1. Representations¶

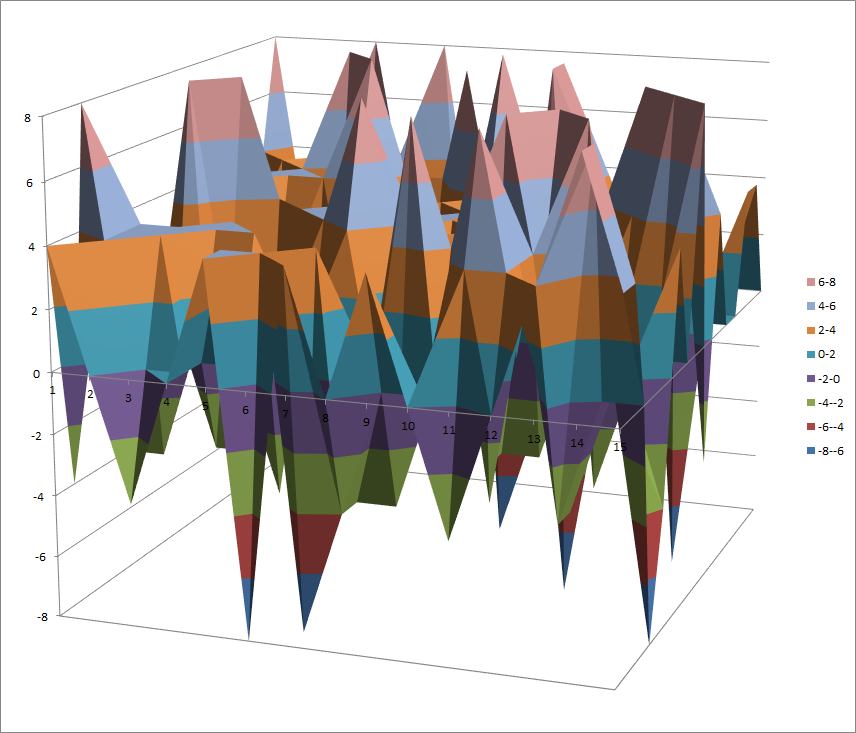

Walsh Spectrum representation (except first row and column):

7.10.6.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	2
4	1
5	2

There are 3 linear structures:

([0 0 1 1],[1 1 1 0])
([0 1 0 0],[1 1 1 0])
([0 1 1 1],[1 1 1 0])

It has 1 fixed point: (0,0,0,0)

It has 1 negated fixed point: (1,0,1,1)

7.10.7. S4 ¶

7.10.7.1. Representations¶

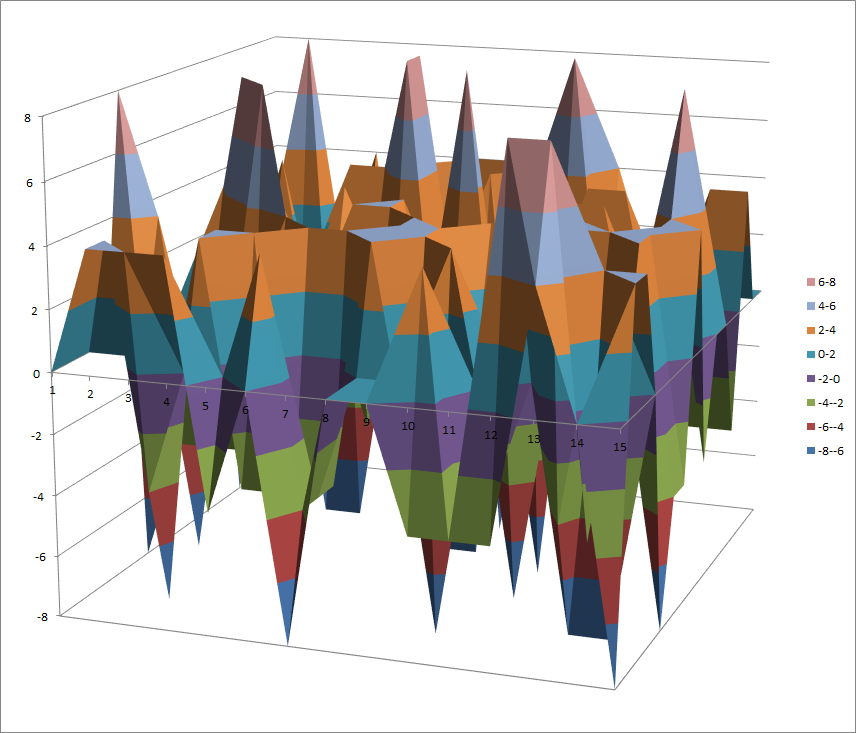

Walsh Spectrum representation (except first row and column):

7.10.7.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	1
2	1
13	1

There are 3 linear structures:

([0 1 0 0],[0 0 0 1])
([1 0 1 1],[0 0 0 1])
([1 1 1 1],[0 0 0 1])

It has 1 fixed point: (0,0,1,1)

It has no negated fixed points

7.10.8. S5 ¶

7.10.8.1. Representations¶

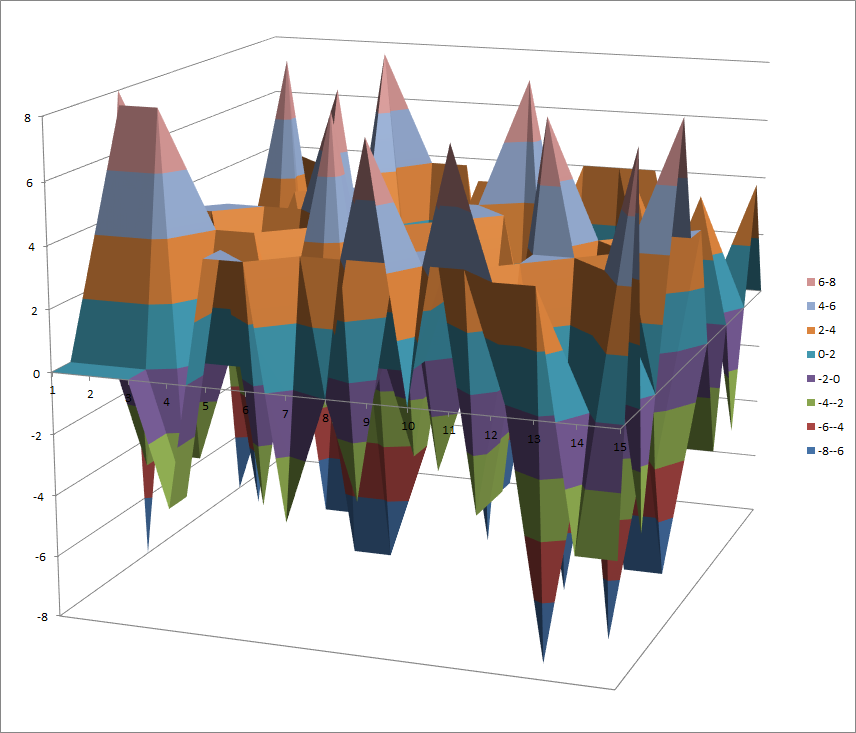

Walsh Spectrum representation (except first row and column):

7.10.8.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	2
14	1

There are 3 linear structures:

([0 1 0 0],[0 0 0 1])
([1 0 1 1],[0 0 0 1])
([1 1 1 1],[0 0 0 1])

It has 1 fixed point: (0,0,1,0)

It has 3 negated fixed points: (0,0,0,0), (0,1,0,1), (0,1,1,0)

7.10.9. S6 ¶

7.10.9.1. Representations¶

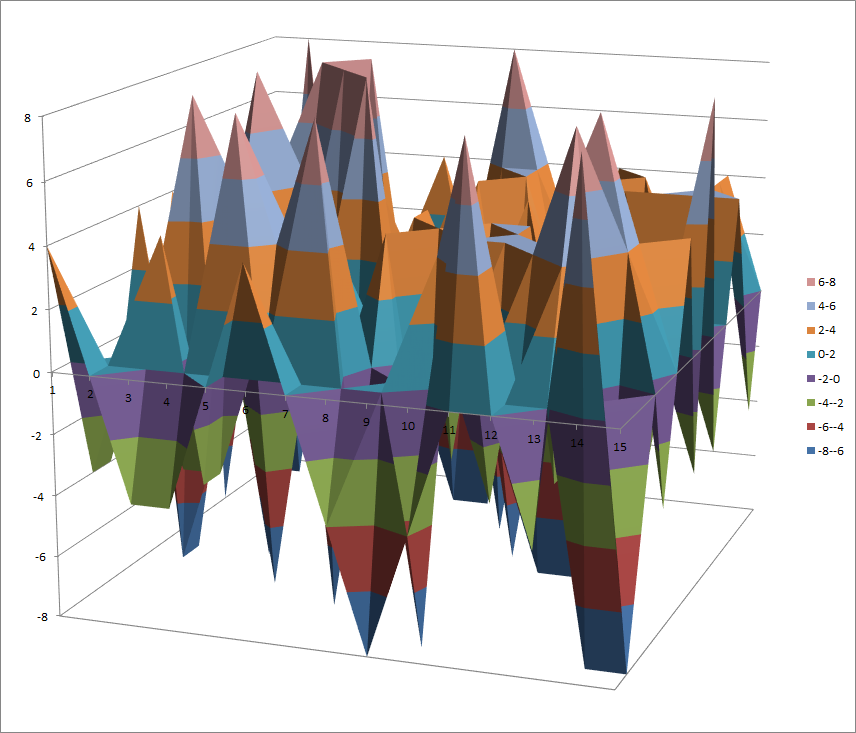

Walsh Spectrum representation (except first row and column):

7.10.9.2. Other useful information in cryptanalysis¶

Cycle structure:

Cycle length	Number of cycles
1	2
4	1
10	1

There are 9 linear structures:

([0 0 1 0],[0 0 1 0])
([0 1 0 0],[0 0 1 0])
([0 1 1 0],[0 0 1 0])
([0 1 1 0],[0 1 0 1])
([0 1 1 0],[0 1 1 1])
([1 0 0 1],[0 1 0 1])
([1 0 1 1],[0 1 1 1])
([1 1 0 1],[0 1 1 1])
([1 1 1 1],[0 1 0 1])

It has 1 fixed point: (0,1,1,0)

It has 1 negated fixed point: (1,1,1,1)

7.10.10. S7 ¶

7.10.10.1. Representations¶

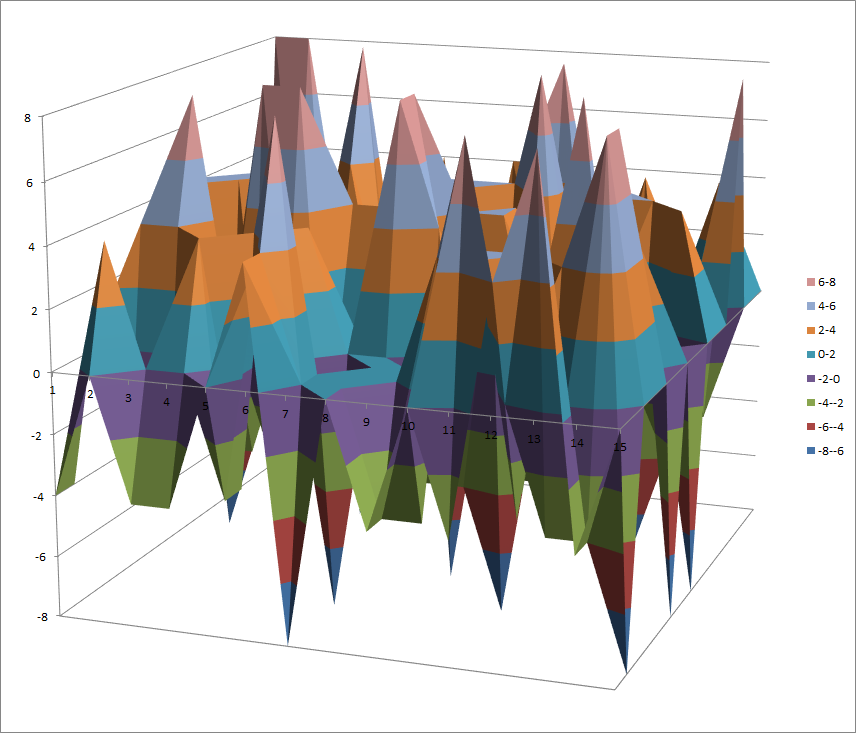

Walsh Spectrum representation (except first row and column):
